UNV 20 MP Multi-Sensor IP Camera

UNV IPC8645EA-ADZKM-I1 Short Description

UNIVIEW | UNIARCH / UNV — Pro Series

UNV 20MP 4-Directional Panoramic IR Dome Network Camera

Model: IPC8645EA-ADZKM-I1 | IP67 + IK10 | LightHunter | PoE IEEE 802.3bt

The Uniview IPC8645EA-ADZKM-I1 delivers 4 × 5MP (20MP total) panoramic coverage from a single installation point. Four independently adjustable lenses capture 2880×1620 resolution at 30fps per channel, backed by LightHunter technology (0.002 lux color / 0 lux IR), 130 dB True WDR, AI Smart Intrusion Prevention, and IP67/IK10 protection.

📡 4 Channels / 1 IP — one cable, four streams	🌙 Super Starlight — 0.002 lux / 0 lux IR
🔭 5X Optical Zoom — 2.7–13.5mm varifocal	🧠 AI Smart Intrusion — human/vehicle classification
🔆 50m IR Range — auto/manual control	⚡ PoE 802.3bt — single-cable power + data
💾 MicroSD up to 512GB — onboard edge storage	🌧️ IP67 + IK10 — weatherproof & vandal-resistant

Quick Specs
Sensor	1/2.7″ CMOS — 4 × 5MP
Resolution	2880×1620 @ 30fps × 4 channels
Lens / Zoom	2.7–13.5mm, 5X optical, F1.2 × 4
Compression	Ultra 265 / H.265 / H.264 / MJPEG
Power	PoE 802.3bt / DC 24V / AC 24V — Max 31W
Operating Temp	-30°C to 60°C (-22°F to 140°F)
Certifications	FCC / CE / UL/CUL / ONVIF (S, G, T, M)

✅ Authorized UNIARCH / UNV Dealer — Tech Security USA | Lynnwood, WA | 206-787-0224 | techsecurityusa.com

Specs sourced from Uniview official product page (IPC8645EA-ADZKM-I1). Subject to change without notice. PoE IEEE 802.3bt switch required for single-cable power. Buyer is responsible for verifying NVR/VMS compatibility.

1 in stock (can be backordered)

0 People watching this product now!

UNV IPC8645EA-ADZKM-I1 – 20MP 4-Directional Panoramic Dome Camera

UNIVIEW | UNIARCH / UNV — PRO SERIES

UNV 20MP 4-Directional Panoramic IR Dome Network Camera

Model: IPC8645EA-ADZKM-I1 | Super Starlight | LightHunter Technology | IP67 + IK10

The Uniview IPC8645EA-ADZKM-I1 is an enterprise-grade 20MP (4 × 5MP) 4-directional panoramic dome IP camera built for large-area surveillance where a single installation point must cover multiple angles without blind spots. Powered by UNV’s LightHunter technology, it delivers ultra-clear imagery down to 0.002 lux — and full-color IR at 0 lux — making it equally capable day or night. Each of the four independently adjustable lenses supports 2880 × 1620 resolution at 30fps, providing broadcast-quality coverage across all four zones simultaneously. Backed by 130 dB True WDR, smart intrusion detection, people counting, and IP67 / IK10 weatherproof construction, this camera is engineered for demanding commercial, industrial, and institutional deployments.

Key Features

📡 4-Channel in 1 IP — one cable, four independent video streams

🌙 Super Starlight / LightHunter — 0.002 lux color, 0 lux with IR

🎯 4 × 5MP @ 30fps — 2880×1620 per channel, simultaneous streams

🔭 5X Optical Zoom — 2.7–13.5mm varifocal, F1.2 × 4 lenses

☀️ 130 dB True WDR — crystal-clear images in harsh backlight

🧠 Smart Intrusion Prevention — human/vehicle/non-motor classification

👥 People Counting — flow counting + crowd density monitoring

🔆 50m IR Range — auto/manual IR on/off control

🌧️ IP67 + IK10 Rated — dust-tight, weatherproof, vandal-resistant

⚡ PoE IEEE 802.3bt — single-cable power + data (max 31W)

Technical Specifications

Camera
Sensor	1/2.7″ CMOS
Min. Illumination	Color: 0.002 Lux (F1.2, AGC ON) \| 0 Lux with IR
WDR	130 dB True WDR
Day/Night	IR-cut filter with auto switch (ICR)
S/N Ratio	>56 dB
Adjustment Angle (per lens)	Pan: 0°–360° \| Tilt: 0°–65° \| Rotate: 0°–355°
Lens
Focal Length	2.7 to 13.5 mm (varifocal)
Optical Zoom	5X
Iris	F1.2 × 4 (fixed)
Field of View (H)	110.3° (wide) to 31° (tele)
Illuminator
IR Distance	50 m (164 ft)
IR Control	Auto / Manual
Video
Channels	4 (one IP address, four independent video streams)
Main Stream (per channel)	5MP (2880×1620) @ 30fps — max resolution
Compression	Ultra 265 / H.265 / H.264 / MJPEG
Video Streams	Triple streams per channel (main / sub / third)
Video Bit Rate	128 Kbps – 16 Mbps × 4 channels
AI / Intelligent Functions
Smart Intrusion Prevention	Cross line, intrusion, enter/leave area detection — human / non-motor vehicle / vehicle classification
People Counting	People flow counting + crowd density monitoring
Exception Detection	Scene change, defocus, object removed, object left behind
Other Events	Motion detection, tampering detection, audio detection, UMD
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Interface
Network	1 × RJ45 10M/100M/1000M Ethernet
Audio I/O	1 Input / 1 Output — Built-in mic, two-way audio
Alarm I/O	3 In / 2 Out
Integration	ONVIF (Profile S, G, T, M), API, SDK
Power & Physical
Power Input	DC 24V ±25% / AC 24V ±25% / PoE (IEEE 802.3bt)
Max Power	31 W
Dimensions	Ø318 mm × 136.6 mm (Ø12.52″ × 5.38″)
Weight	4.77 kg (10.52 lb)
Operating Temp	-30°C to 60°C (-22°F to 140°F)
Surge Protection	6 KV
Protection Rating	IP67 (IEC 60529) + IK10 (IEC 62262)
Certifications
EMC / Safety	FCC Part 15B \| CE-EMC \| UL/CUL (UL 62368-1) \| CE-LVD \| CE-RoHS / WEEE

✅ Authorized UNV / Uniarch Dealer

Tech Security USA is an authorized dealer of UNIARCH / UNV security cameras and surveillance equipment. All products are genuine, manufacturer-sourced, and backed by manufacturer warranty support. Questions? Call us at 206-787-0224 or visit techsecurityusa.com — Lynnwood, WA.

All product specifications are sourced from the official Uniview manufacturer product page for model IPC8645EA-ADZKM-I1. Specifications subject to change by manufacturer without notice. Buyer is responsible for verifying compatibility with their existing NVR or VMS infrastructure. PoE IEEE 802.3bt (Type 3 or Type 4) switch required for single-cable power delivery.

-5%

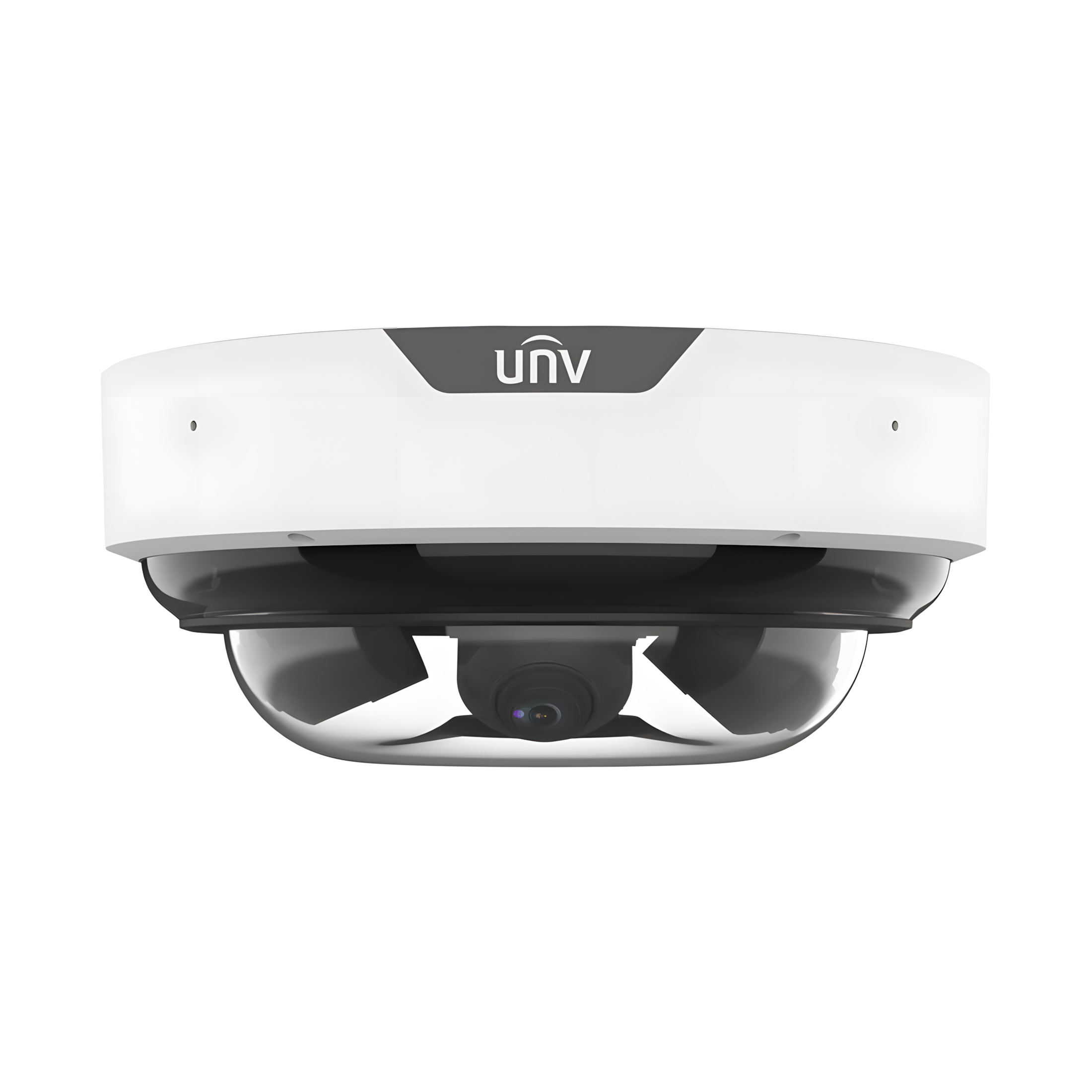

UNV 20 MP Multi-Sensor IP Camera - Image 1

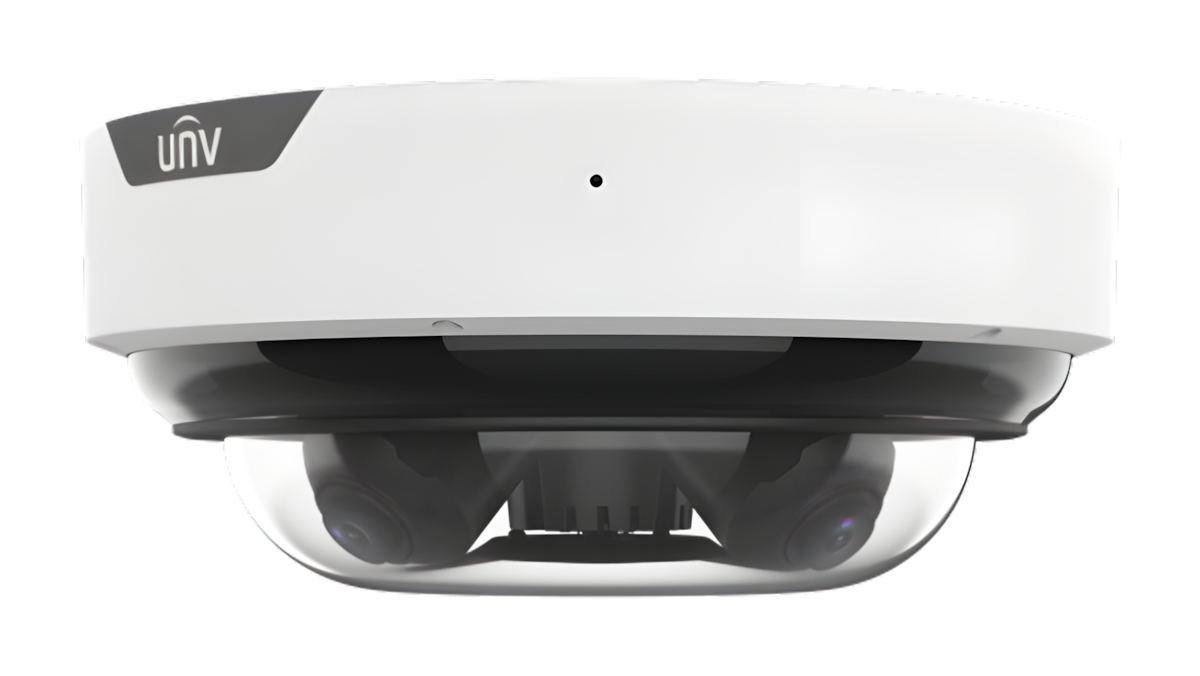

UNV 20 MP Multi-Sensor IP Camera - Image 2

Click to enlarge

Original price was: $4 ,989.00.Current price is: $4 ,739.55.

📡 4 Channels / 1 IP — one cable, four streams	🌙 Super Starlight — 0.002 lux / 0 lux IR
🔭 5X Optical Zoom — 2.7–13.5mm varifocal	🧠 AI Smart Intrusion — human/vehicle classification
🔆 50m IR Range — auto/manual control	⚡ PoE 802.3bt — single-cable power + data
💾 MicroSD up to 512GB — onboard edge storage	🌧️ IP67 + IK10 — weatherproof & vandal-resistant

Quick Specs
Sensor	1/2.7″ CMOS — 4 × 5MP
Resolution	2880×1620 @ 30fps × 4 channels
Lens / Zoom	2.7–13.5mm, 5X optical, F1.2 × 4
Compression	Ultra 265 / H.265 / H.264 / MJPEG
Power	PoE 802.3bt / DC 24V / AC 24V — Max 31W
Operating Temp	-30°C to 60°C (-22°F to 140°F)
Certifications	FCC / CE / UL/CUL / ONVIF (S, G, T, M)

Compare

Add to wishlist

Description

Camera
Sensor	1/2.7″ CMOS
Min. Illumination	Color: 0.002 Lux (F1.2, AGC ON) \| 0 Lux with IR
WDR	130 dB True WDR
Day/Night	IR-cut filter with auto switch (ICR)
S/N Ratio	>56 dB
Adjustment Angle (per lens)	Pan: 0°–360° \| Tilt: 0°–65° \| Rotate: 0°–355°
Lens
Focal Length	2.7 to 13.5 mm (varifocal)
Optical Zoom	5X
Iris	F1.2 × 4 (fixed)
Field of View (H)	110.3° (wide) to 31° (tele)
Illuminator
IR Distance	50 m (164 ft)
IR Control	Auto / Manual
Video
Channels	4 (one IP address, four independent video streams)
Main Stream (per channel)	5MP (2880×1620) @ 30fps — max resolution
Compression	Ultra 265 / H.265 / H.264 / MJPEG
Video Streams	Triple streams per channel (main / sub / third)
Video Bit Rate	128 Kbps – 16 Mbps × 4 channels
AI / Intelligent Functions
Smart Intrusion Prevention	Cross line, intrusion, enter/leave area detection — human / non-motor vehicle / vehicle classification
People Counting	People flow counting + crowd density monitoring
Exception Detection	Scene change, defocus, object removed, object left behind
Other Events	Motion detection, tampering detection, audio detection, UMD
Storage
Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Interface
Network	1 × RJ45 10M/100M/1000M Ethernet
Audio I/O	1 Input / 1 Output — Built-in mic, two-way audio
Alarm I/O	3 In / 2 Out
Integration	ONVIF (Profile S, G, T, M), API, SDK
Power & Physical
Power Input	DC 24V ±25% / AC 24V ±25% / PoE (IEEE 802.3bt)
Max Power	31 W
Dimensions	Ø318 mm × 136.6 mm (Ø12.52″ × 5.38″)
Weight	4.77 kg (10.52 lb)
Operating Temp	-30°C to 60°C (-22°F to 140°F)
Surge Protection	6 KV
Protection Rating	IP67 (IEC 60529) + IK10 (IEC 62262)
Certifications
EMC / Safety	FCC Part 15B \| CE-EMC \| UL/CUL (UL 62368-1) \| CE-LVD \| CE-RoHS / WEEE
