Product Overview

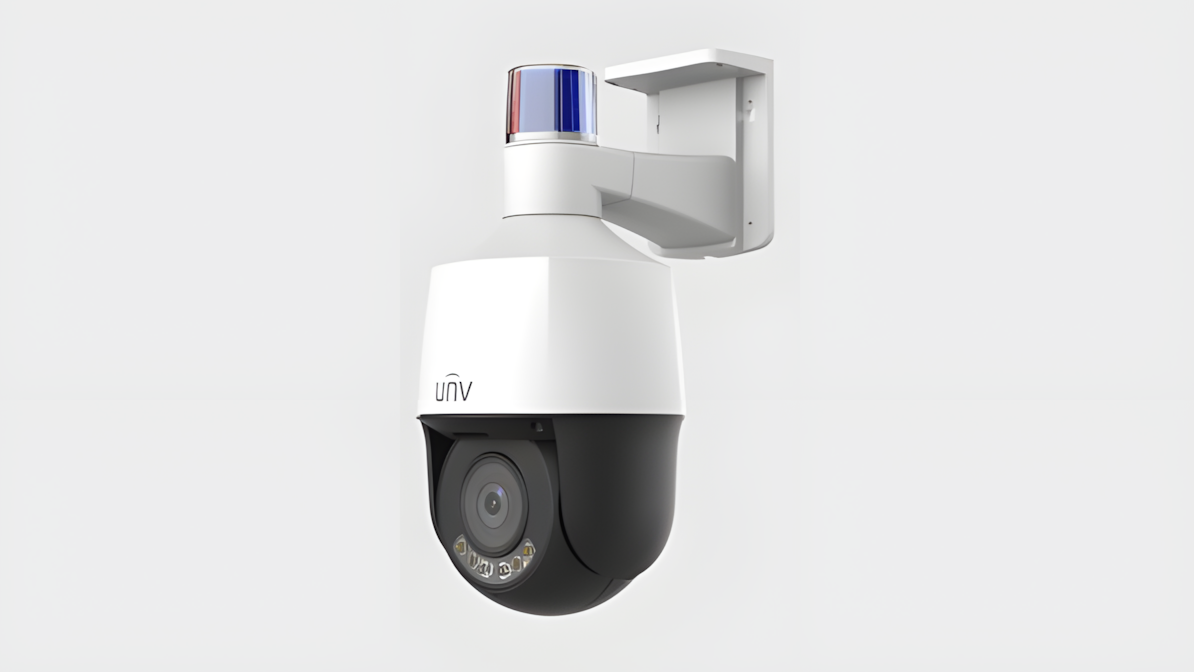

The UNV IPC6324LWH-AX5C-VG2 is a professional 4-megapixel PTZ network camera built on the Owlview Tri-Guard platform. Equipped with a large-format 1/1.8″ CMOS sensor, Wise-ISP color intelligence, and active warm light deterrence, it delivers full-color night video up to 40 meters while actively warning intruders with built-in audio and illumination. With 5X optical zoom, 345° pan travel, AI-powered Smart Intrusion Prevention, and auto-tracking, this is a purpose-built outdoor PTZ for perimeter security, commercial properties, and critical infrastructure.

Key Features

• 4MP Resolution with 1/1.8″ CMOS Sensor — Captures ultra-detailed 2688×1520 video at up to 30fps for crystal-clear identification at distance.
• ColorHunter with Wise-ISP Technology — Deeply optimizes color fidelity, fine detail, and smear reduction in near-total darkness. Minimum illumination down to 0.0005 Lux (F1.2, AGC ON).
• Tri-Guard Active Deterrence — Combines Smart Intrusion Prevention, ColorHunter full-color imaging, and warm light active deterrence to stop intrusions before they escalate.
• 40-Meter Warm Light Illuminator — Built-in warm-light LEDs provide full-color illumination up to 40 m (131 ft) in complete darkness. Auto or manual control.
• 5X Optical Zoom (2.7–13.5mm) — Covers 113.69° wide to 50.29° telephoto horizontally, with DORI detection range up to 209.9 m and recognition range up to 42.0 m.
• AI-Powered Auto-Tracking — Automatically locks onto and follows moving targets with human-only filtering to eliminate false triggers from vehicles and environmental motion.
• Smart Intrusion Prevention — Cross line detection and intrusion detection engine with human body and vehicle classification for dramatically reduced false alarms.
• Ultra Motion Detection (UMD) — Advanced motion analysis for more accurate and reliable alert generation.
• 120dB True WDR — Handles extreme contrast scenes — bright entrances, sunlit areas, and backlit subjects — without overexposure or loss of shadow detail.
• Built-in Two-Way Audio — Integrated microphone and speaker support real-time communication and audio deterrence. G.711U/A codec. Sampling at 8kHz or 16kHz.
• PTZ Control: 345° Pan, 110° Tilt — Pan range 0°–345° at 1–50°/s; tilt range -10° to 100° at 1–40°/s. Supports 1,024 presets and 16 patrol routes (up to 64 presets each).
• MicroSD Edge Storage up to 512GB — Records locally without an NVR for standalone or backup operation.
• IP66 Weather Resistance — Fully sealed against dust and heavy rain for reliable outdoor deployment year-round.
• Built-in Heater — Maintains reliable cold-weather operation in environments down to -30°C (-22°F).
• PoE (IEEE 802.3at) or DC 12V Power — Flexible single-cable PoE deployment or direct 12V supply. Max consumption ≤25.4W.
• Ultra 265 / H.265 / H.264 / MJPEG Compression — Efficient bandwidth and storage usage with triple-stream output.
• ONVIF Profile S, G & T Compatible — Integrates with virtually any standards-compliant VMS, NVR, or security platform.
• Alarm I/O: 1 In / 1 Out — Connects external sensors, sirens, or access control hardware for integrated response automation.
• Metal Construction, 1.33 kg — Heavy-duty metal housing built for permanent outdoor installation.
• 2KV Surge Protection — Protects against electrical transients in exposed outdoor environments.
• UL / FCC / CE / IP66 Certified — Meets UL 62368-1, FCC SDoC (Part 15 Subpart B), CE-EMC, CE-LVD, and CE-RoHS requirements.

Full Specifications

Compatibility & Software

The IPC6324LWH-AX5C-VG2 is compatible with EZStation VMS, EZLive, and EZView client software. It supports ONVIF Profile S, G, and T for third-party NVR and VMS integration. Web access is available through major browsers (plug-in required for live view). Available in 22 UI languages.
