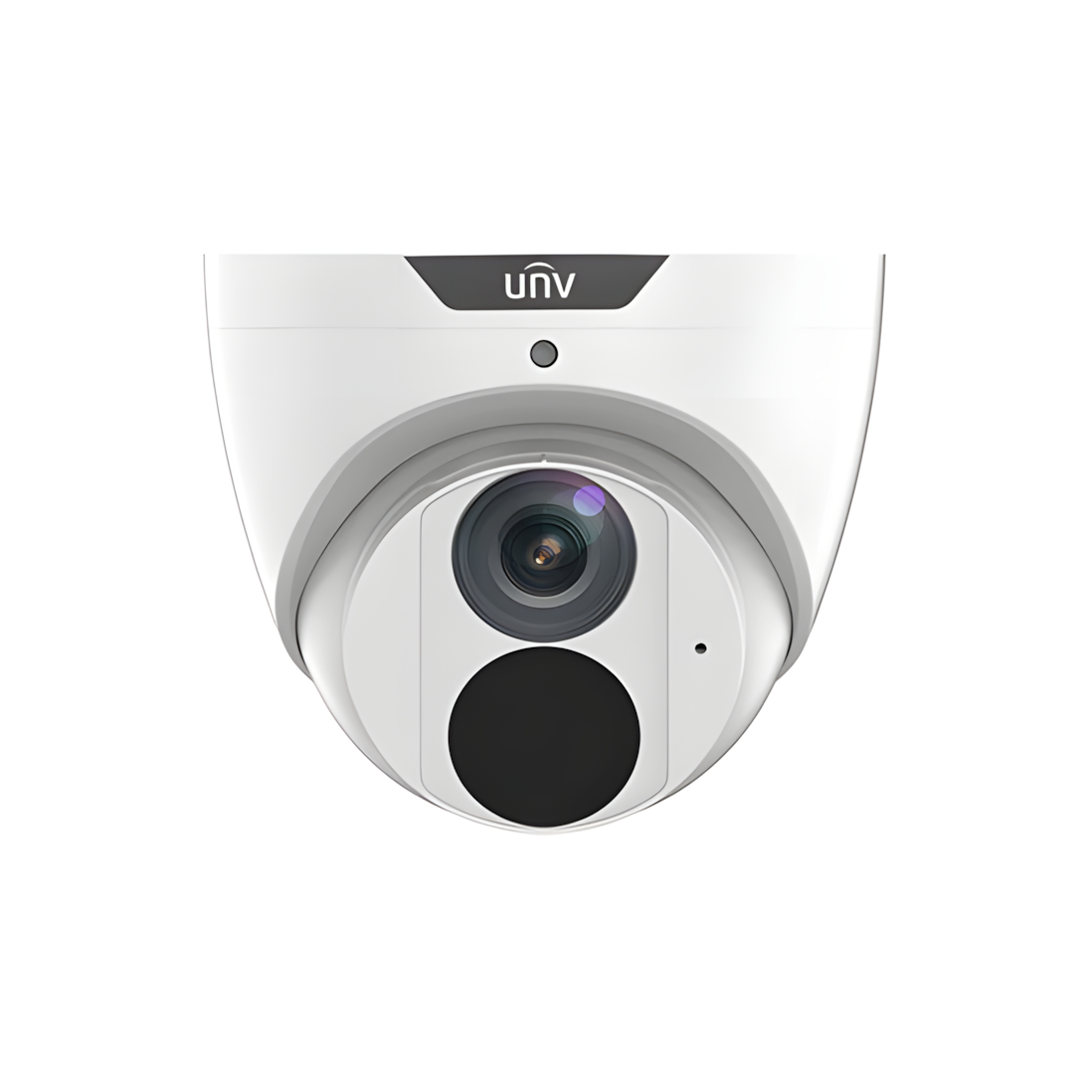

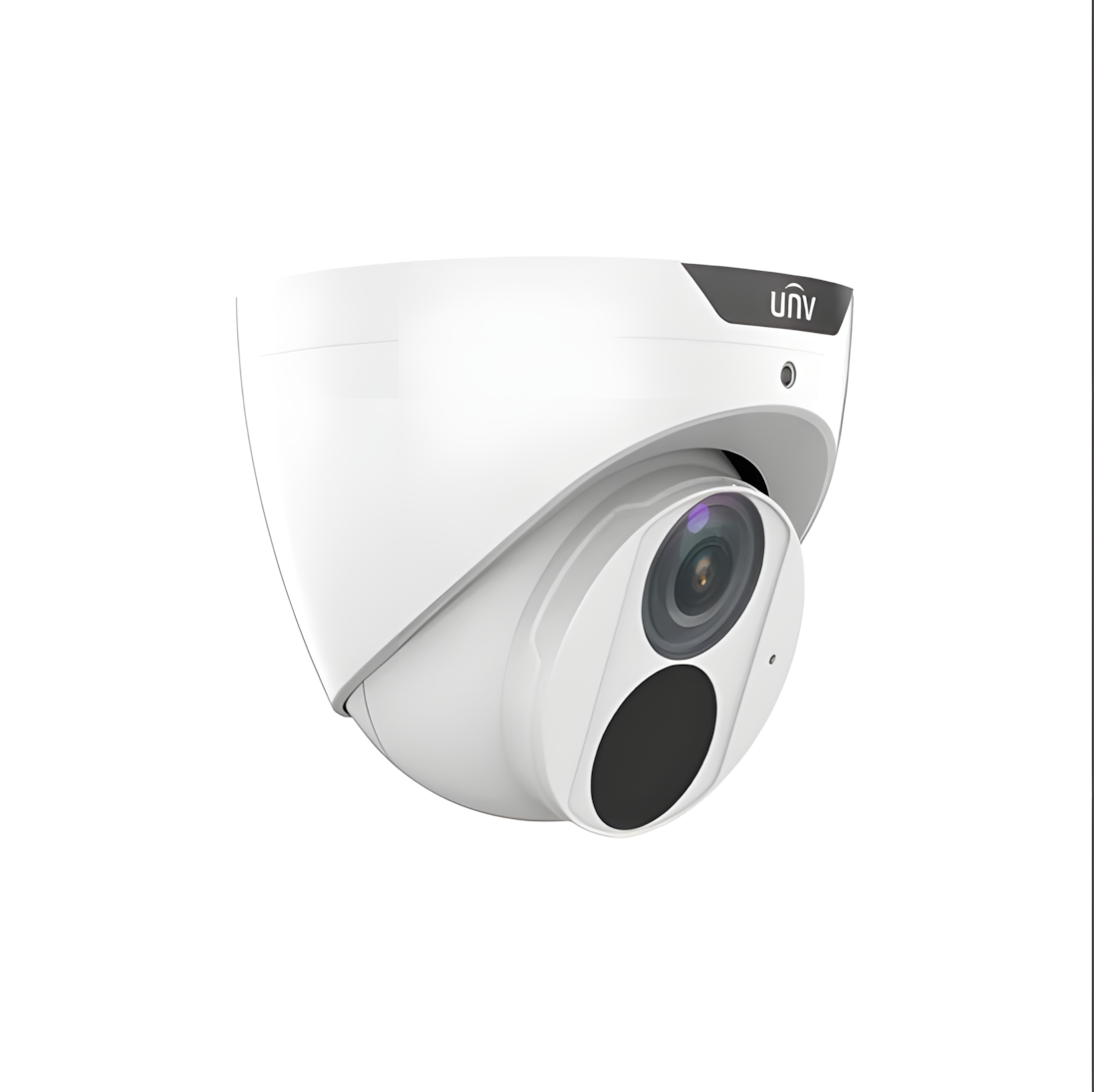

UNV 5MP Tri-Guard Fixed Dual-light Turret Network Camera

Model: IPC3615SB-ADF28(40)KMC-I0

Authorized UNV / Uniview Dealer | Lynnwood, WA | techsecurityusa.com

NDAA Compliant | Not on the FCC Covered List

See Everything. Stop Threats Before They Happen.

The UNV IPC3615SB-ADF28(40)KMC-I0 is a professional-grade 5-megapixel Tri-Guard turret camera engineered for perimeter protection that actually works. Most cameras record incidents. This one prevents them. When the Smart Intrusion Prevention system detects a human or vehicle crossing your defined boundaries, the camera doesn’t wait — it fires the built-in audible alarm and activates the warm light deterrent automatically, creating an immediate, visible warning that stops intruders in their tracks. That’s not surveillance. That’s active defense.

Backed by Uniview’s Prime Series engineering, this camera delivers full 5MP resolution, 120dB true Wide Dynamic Range, and dual illumination — both infrared and warm white light — covering up to 30 meters in complete darkness. Whether you’re protecting a business, warehouse, parking lot, or residence, the IPC3615SB gives you professional security at a price point that makes sense.

Core Features at a Glance

Dual-Light Technology: IR + Warm White

Most cameras offer one illumination mode. The IPC3615SB offers two — and they work together or independently based on your settings and environment. The 850nm infrared light delivers classic black-and-white night vision up to 30 meters, ideal for situations where you don’t want to draw attention. The warm white light — also reaching 30 meters — floods the scene in full color, delivering vivid, identifiable footage even in total darkness. When linked to Smart Intrusion Prevention, the warm light activates automatically as a deterrent the moment a threat is detected. One camera. Two modes. Zero compromise.

Smart Intrusion Prevention: AI That Thinks Before It Alerts

Most motion detection systems are noise. Wind-blown branches, shadows, passing headlights — they all trigger false alarms that train people to ignore alerts. UNV’s Smart Intrusion Prevention is different. The onboard AI classifies every moving object as a human, vehicle, or non-motor vehicle before deciding whether to trigger an alert. Leaves blow. Birds land. Lights sweep across the frame. The camera knows the difference. When a real person or real vehicle crosses your defined zones — cross line, enter area, leave area, or full intrusion detection — you get an alert that means something. And if active deterrence is configured, that alert also means a flashing light and audible alarm aimed directly at the threat.

Available Lens Configurations

The 2.8mm variant covers wide open areas like parking lots, lobbies, and building exteriors. The 4.0mm variant provides a narrower, more focused field ideal for corridors, driveways, entryways, and longer detection ranges.

Video Intelligence: More Than Just Recording

With Ultra 265 compression, the IPC3615SB delivers superior image quality at significantly lower bitrates than standard H.265 — reducing storage requirements and bandwidth load without sacrificing clarity. Triple simultaneous streams allow independent configuration for live monitoring, local storage, and remote access. Up to 8 on-screen display overlays and 4 privacy mask zones give you full control over what appears in recordings. The 9:16 corridor mode is ideal for hallways, stairwells, and narrow passages where standard widescreen framing wastes valuable field of view.

Built-In Audio: Hear and Speak

The integrated microphone captures ambient audio continuously alongside video. The built-in speaker enables live voice deterrence — warn intruders in real time from a smartphone or VMS client before a situation escalates. Audio compression uses G.711U and G.711A at 64 Kbps, and echo suppression is included for clear two-way communication even in noisy environments.

People Counting and Crowd Density Monitoring

Beyond security, the IPC3615SB provides real operational data. The people counting function tracks foot traffic flow in defined areas, enabling occupancy management, queue analysis, and trend reporting. Crowd density detection provides density-level alerts when thresholds are exceeded — valuable for retail compliance, venue management, and emergency planning. These are functions that would require separate systems in most setups; here they’re built into the camera.

Installation Flexibility

The compact Ø111 × 95mm turret form factor mounts to ceilings, walls, and eaves without tools beyond a drill. The full 360° pan, 80° tilt, and 360° rotate adjustment range means you can aim precisely at any angle during installation. PoE (802.3af) over standard Cat5e/Cat6 cable eliminates the need for a separate power run. At 7.5W max consumption, a single PoE switch port handles everything. The Ø5.5mm coaxial power plug also accepts DC 12V±25% for non-PoE installations.

Full Technical Specifications

Compatible Software and Client Access

The IPC3615SB integrates natively with UNV’s EZStation VMS and the EZView mobile app for iOS and Android. ONVIF Profile S, G, T, and M compatibility ensures seamless integration with virtually all third-party NVR and VMS platforms including Milestone, Genetec, Hanwha, and more. Up to 32 simultaneous users can access the camera, with three permission tiers: administrator, common user, and operator. The camera ships with full security hardening including HTTPS encryption, TLS 1.2, password protection, and RTSP/ONVIF authentication.

Ideal Applications

The IPC3615SB-ADF28(40)KMC-I0 is purpose-built for environments where active deterrence matters. Retail storefronts and parking lots where after-hours intrusion is a known risk. Commercial properties and warehouses requiring verified alarm triggers that reduce false dispatch calls. Residential properties where owners want more than passive recording — they want the camera to respond. Schools, healthcare facilities, and any location deploying Uniview NVRs that need cameras capable of full Smart Intrusion Prevention and people analytics within a single compact housing.

Shipping Information

Ships to the continental United States only. No international shipping. No shipments to Alaska or Hawaii.
